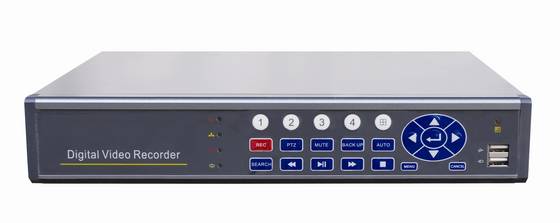

M-JPEG Stand-alone DVR 7104

M-JPEG Stand-alone DVR 7104
Technical parameters:

Item No.


Video Compression format



English, Chinese

Video System



Video Input

4CH , NTSC/PAL, 1.0VP-P, 75Ω, BNC

Video Outputs

1CH monitor output, VGA output(optional)

Video Resolution

720 �480

720 �576

Display Modes

Full screen, multiple screen, Sequence display,exchangable channel display.



Recording Modes

Manual, Continue, alarm, motion detection

Operating System

Embeded  Linux

Operating Method

USB mouse, remote control, control panel

Triplex Operation

live & record & playback & backup & network

Refresh Rate

   CIF:NTSC 120fps/360�SPAN lang=EN-US>240

   CIF:PAL 100fps/360�SPAN lang=EN-US>288

   1/2D1:NTSC 60fps/720�SPAN lang=EN-US>240

   1/2D1:PAL 50fps/720�SPAN lang=EN-US>288

  D1:NTSC 30fps/720�80

  D1:PAL 25fps/720�76

Watchdog (LED indicator)

Power, channel, backup, network

Event Modes

Alarm trigger, video detection trigger

Alarm Input

4CH alarm inputs, 1 repeater output, COM & N.O.& N.C.

High Playback Speed

�2, �4,�6, single frame playback

Playback Searching

Date & time, Manual recorder time list, Schedule  list

Network Protocols

TCP/IP, DHCP & static IP

PTZ Contro

RS485,preset positions operation

HD Storage


Backup System

USB, network backup, AVI format backup

Power Supply


AX dimensions

315L�241W�57H mm

Environment Temperature

 -30°C ~ 60°C
